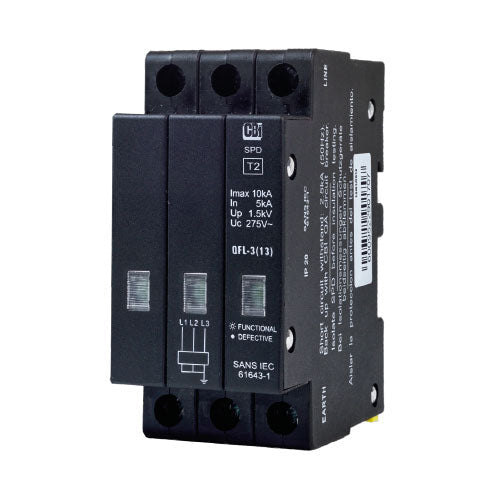

CBi Mini Rail Surge Protector QFL-3(13) 3P 275V with Indication - 10kA

sku: QFLM0003
Product Description
  • LED indication of the SPD's condition - while ON, the SPD is functional, if OFF and the mains power is still available, then the SPD is no longer functional and should be replaces
  • Thermal disconnect device (prevents potential thermal runaway problems)
  • One port SPD (no series impedance)
  • Requires to be backed up by a QA MCB
  • Requires to be backed up by a QA MCB
  • Surge Protection Devices should be installed by a trained professional to prevent any damages caused by incorrect installation
  • Class II Surge Protection Devices are only to be used where items are not subjected to direct lightning strikes and the voltage / current surges are reduced in magnitude
Colour: Black
Material: Copper and polycarbonate
Mounting Type: Mini Rail
Poles: 3
Short Circuit Withstand: 2.5kA
Escutcheon: 57mm
Discharge Current (Imax): 10kA
Discharge Current (Inom): 5kA
Voltage: 275Vac
Width: 39mm
Length: 84.8mm
Depth: 66mm
Class of Surge Protection Device: II
IP Rating: IP20
Weight: 426g
Technical Document: Download
R 929.00 incl. VAT incl. VAT
